Cloverdale Heavy Duty Mixing Tub

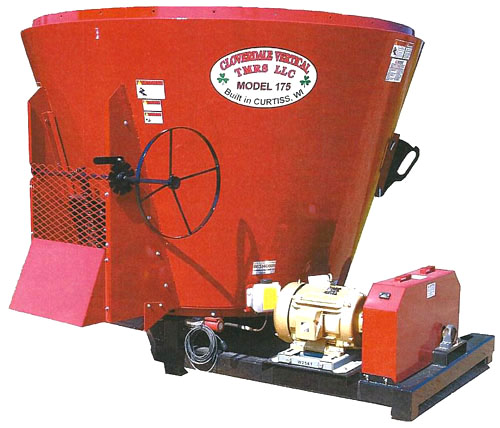

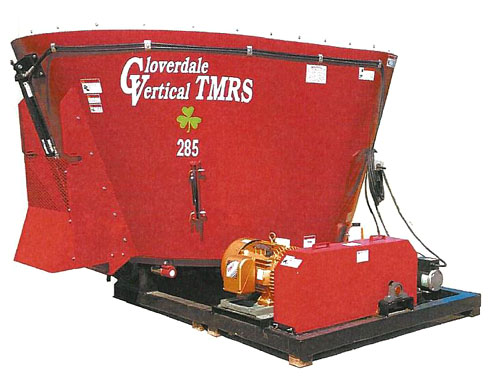

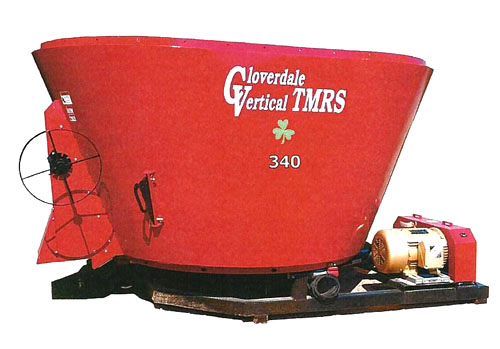

3-Phase Stationary TMR Mixers – Models 175 | 285 | 340

  • 2 year warranty on scale
  • 5 year, 5,000 load warranty on mixing tub, auger, floor & frame
  • 2 year full, 3 additional year warranty on planetary (pro-rated)
  • Weightronix or Digi-Star scale
  • Manual or hydraulic door
  • 20 HP motor

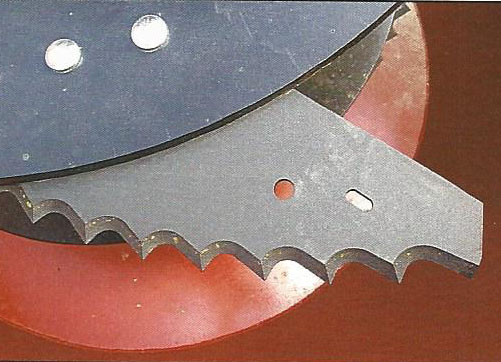

  • 21” Tungsten knives for fast processing
  • Patented tub discharge on 3 sides just by turning tub
  • Models 175 & 285: 3/4” reinforced floor with 1/4” side walls and 1/2” auger flighting
  • Model 340: 3/4” floor and 1/4” side walls and 5/8” auger flighting

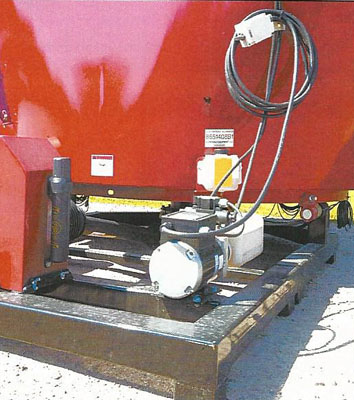

  • Includes a three speed variable frequency drive and three phase inverter
  • 175 and 285 auger speeds, low -14 rpm, medium - 28 rpm, high clean out - 42 RPM

SPECIFICATIONS

Model Approx. cubic feet With 12" rubber top Height Max number of knives Length Width (without chute) Discharge Motor Safety ladder 24" magnet
175 175 225 6'5" 5 8'10" 8' 24" 20 HP Optional Optional
285 285 340 6'7" 8 11' 7'8" 24" 25 HP Optional Optional
340 350 425 7' 8 12'3" 9' 24" 30 HP Optional Optional
420 410 498 7'4" 8 13' 9'6" 36" 40 HP Optional Optional
500 455 560 7'10" 8 13'2" 9'8" 36" 50 HP Optional Optional
