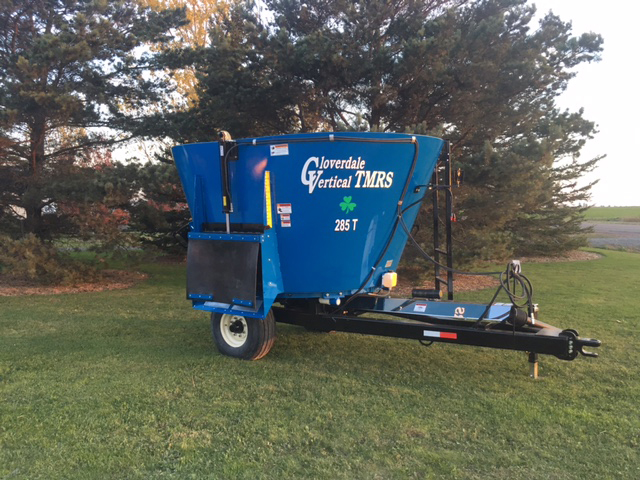

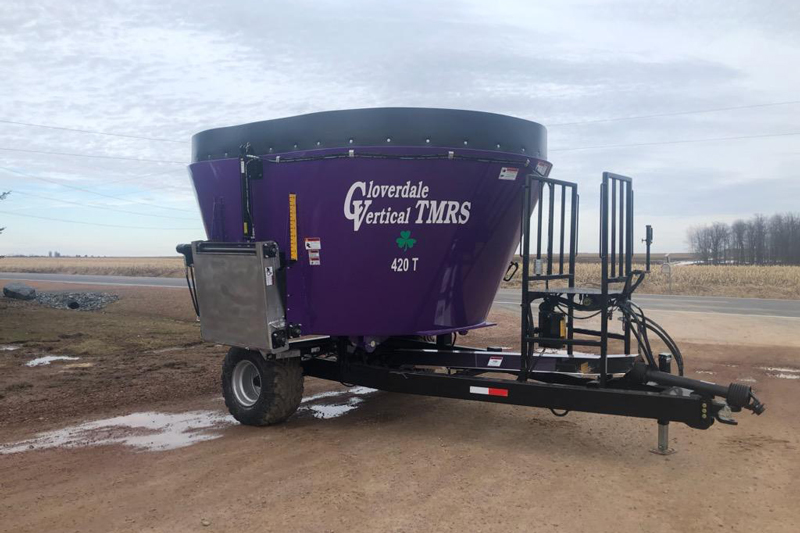

Cloverdale Single Auger Trailer Mixer

Models: 285T | 350T | 420T | 500T | 600T | 720T

Cloverdale Single Auger Trailer Mixer
  • 5 year, 5,000 load warranty on mixing tub, auger, floor & frame
  • AR 200 auger flight
  • 5/8" standard upgrade to 3/4"
  • 1/4" sidewalls (3/8" available)

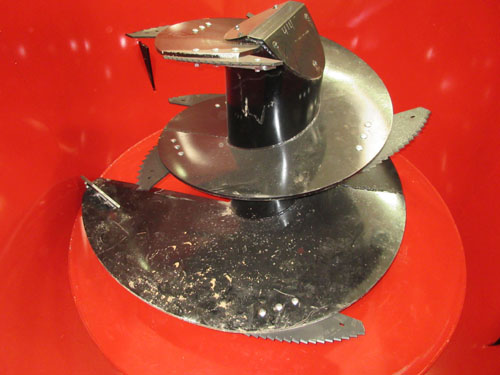

  • 21" tungsten carbide auger knives to process hay bales

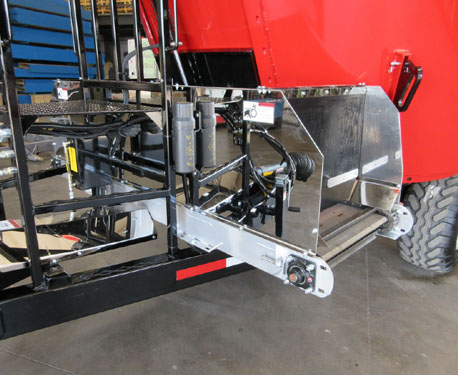

  • Optional stainless steel side discharge conveyors (3', 4' 5' or 6')

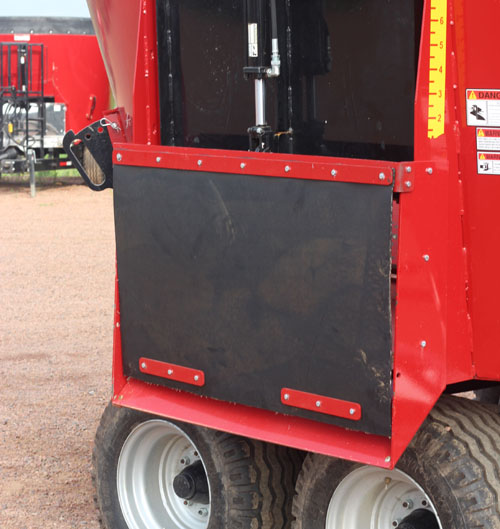

  • Front door conveyors have flat feed out on one or both sides
  • Conveyors have incline to fill bunks
  • C-55 chain

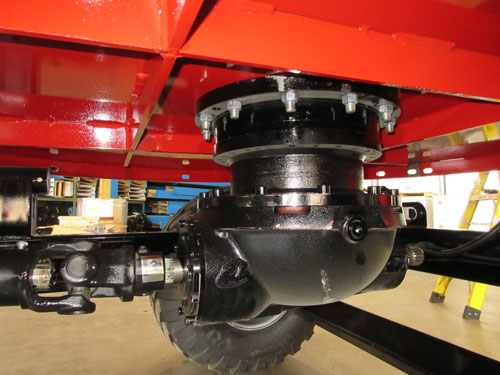

  • Heavy-duty PTO with shear pin
  • Weightronix scale or Digi-Star
  • Ladder with viewing platform
  • Heavy duty jack
  • We can custom-build a TMR mixer to meet your exact feed mixing needs!

SPECIFICATIONS

Model Cubic Foot Cubic Foot w/ Rubber Height Height w/ Rubber Top Tub Width Width w/ Front Conv Width w/ Side Door Width w/ Side Conv Tub Wall Height Length Front Conv Width Side Con Width Max Ration Weight Weight of Mixer Total Est Horse Power
285T 285 340 96 108 90 93 95 102 60.5 15'4" 36" 36" 7125 6800 13925 75
350T 350 425 99 111 102 105 107 114 60.5 17'2" 36" 36" 8750 8100 16850 85
420T 410 498 99 111 108 111 113 120 60.5 18'3" 36" 42" 10500 9400 19900 100
500T 455 560 105 117 109 112 114 121 66.5 18'4" 36" 42" 10500 10100 21475 110
600T 505 620 107 119 117 120 122 129 66.5 18'87" 36" 42" 11375 10900 23525 125
720T 600 715 119 131 117 120 122 129 78.5 19'2" 36" 42" 15000 11800 26800 140
