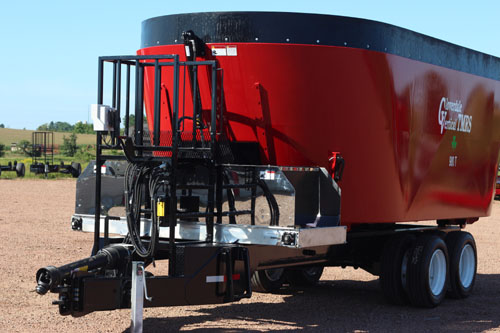

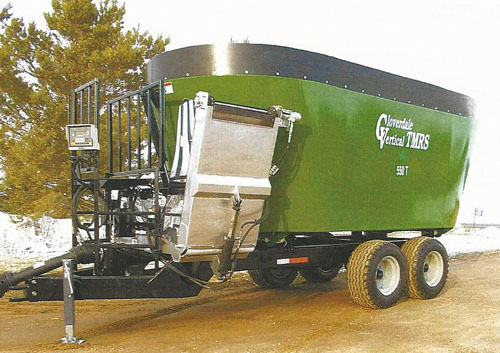

Cloverdale Twin Auger Trailer Mixer

Models: 310T | 550T | 650T | 760T | 900T | 1100T | 1500T

Cloverdale Twin Auger Trailer Mixer
  • 5 year, 5,000 load warranty on mixing tub, auger, floor & frame

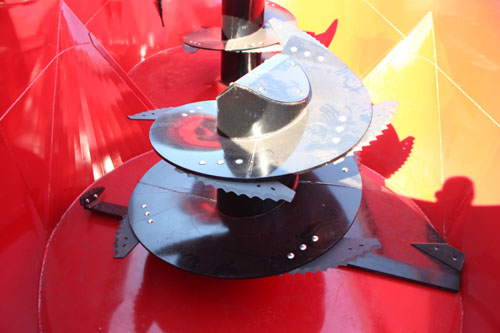

  • AR 200 auger flight
  • 5/8" standard upgrade to 3/4"

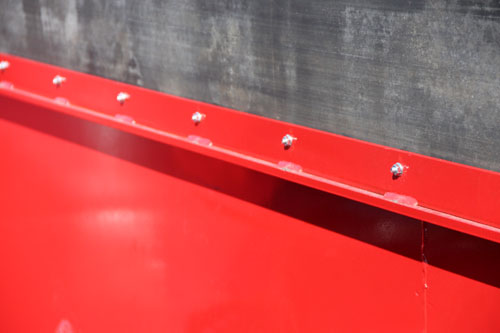

  • 1/4" sidewalls (3/8" available)
  • 21" tungsten carbide auger knives to process hay bales
  • Side & rear doors available
  • Optional stainless steel side discharge conveyors (3', 4' 5' or 6')
  • Front door conveyors have flat feed out on one or both sides
  • Conveyors have incline to fill bunks
  • C-55 chain
  • Heavy-duty PTO with shear pin
  • Weightronix scale or Digi-Star
  • Ladder with viewing platform
  • Heavy duty jack
  • We can custom-build a TMR mixer to meet your exact feed mixing needs!

SPECIFICATIONS

Model Cubic Foot Cubic Foot w/ Rubber Height Height w/ Rubber Top Tub Width Width w/ Front Conv Width w/ Side Door Width w/ Side Conv Tub Wall Height Length Front Conv Width Side Con Width Max Ration Weight Weight of Mixer Total Est Horse Power
310T 310 460 6'5" 110 98 101 N/A N/A 60.5 13'6" 36" N/A 8800 9500 18300 90
550T 550 675 100 112 98 101 103 110 60.5 22'6" 30" 42" 16000 15900 31900 100
650T 650 830 100 112 110 113 115 122 66.5 25' 36" 42" 18500 17700 36200 120
760T 760 930 108 120 110 113 115 122 72.5 25' 36" 42" 25000 18600 43600 140
900T 900 1050 108 120 115 118 120 127 66.5 27'7" 36" 42" 28500 19100 47600 150
1100T 1100 1300 122 134 113 116 118 125 78 27'7" 42" 42" 34500 21200 55700 180
1500T 1500 N/A 134 N/A 113 116 118 125 102 27'10" 42" 42" 44000 23000 67000 200
